RoentDek PRODUCT LIST

DETECTOR INSTALLATION AND HIGH VOLTAGE POWER SUPPLIES




Product
number


Product
Description

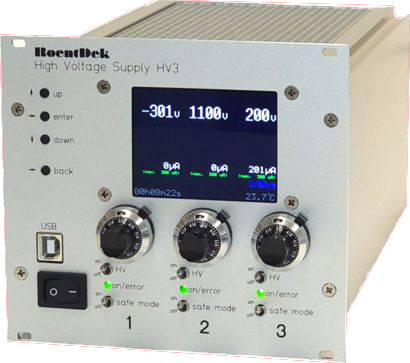

  318 HV3: 3-channel high voltage supply. 3HU-unit, includes mains power supply (100V-250V). 3 individual channels with fixed output polarity (max. 4kV/6kV), max. 1mA. The polarities can be changed in our factory. Trip/hold protection with selectable voltage and current limits. Selectable A’=A+B-option. Can be remote controlled via software (USB or Telnet), DC-input voltage and web interface.Ripple/noise typ. < 5 mVp-p, max. 10 mVp. SHV connection cables are not included.
MANUAL    DESCRIPTION SHEET
HV3

  350 FT12-TP (or FT12-TPhex) 12-pin-ceramics-UHV-feedthrough and HF signal de-coupler on CF35 (ICF70) norm with UHV-cables for delay line detector (DLD), fitted to customer needs (max. 0.5 m), rated up to 4 kV DC. Includes BA3 battery box. (not if z option is ordered).
...z: option with integrated HVZ function, no BA3
FT12-TP(z) / nnn: FT12-TP with mounting kit for DLD 40 / 80 / 120 and CFnnn-CF35 adapter flange (ICF153 / 203 / 253-ICF70) for direct mounting. The adjacent port must have at least xxx mm open diameter.



351

FT12-TP(z)/100 for DLD40
  352 FT12-TP(z)/150 for DLD80
  353 FT12-TP(z)/200 for DLD120
  354 FT12-TP(z)/250 for DLD120 and DLD150

    MANUAL

  355 FT16-TP: 12+4-pin-ceramics-UHV-feedthroughs and HF signal de-coupler on CF35 (ICF70) norm (2 flanges) with UHV-cables for Hexanode delay line detector fitted to customer needs (max. 0.5 m), rated up to 4 kV DC. Includes FT12-TPhex, 3 HFSD/HFST signal terminator / decoupler and BA3 battery box. (no BA3 if HVZ is ordered).



356

FT16-TP/200: FT16-TP with mounting kit for Hex75 / HEX80 and CF200-CF35² adapter flange (ICF253-ICF70²) for direct mounting. The adjacent port must have at least 200mm open diameter.
  357 FT16-TP/250: FT16-TP with mounting kit for Hex120 / HEX100...



358


FT16-TP/300: FT16-TP with mounting kit for Hex120/HEX100 for large flange
MANUAL



  359 FT4-TPshv: 4-fold SHV ceramics UHV-feedthrough on CF35(ICF70) incl. in-vacuum cables and 2 HFSD signal decoupler. For DET40 or similar SEM-devices.

  360 FT4-TPshv / 100: FT4-TP incl. mounting gear and CF100 / 35 (ICF153-ICF70) flange.
MANUAL



  Please inquire for shipping options 'readily mounted' and 'mounted&tested' now available for most detectors’ flange mountings and for detector mountings/feedthroughs and signal decoupling with increased voltage rating.



  312 HV2/4: protective 2x4kV-high-voltage-power-supply for MCPs, single width NIM unit. Two individual channels, pos. or neg., up to 4 kV at 3 mA, current and voltage indicator, trip/hold protection for selectable voltage and current limits. Requires SPS2 (mini) or a NIM-bin for operation (not included). SHV connection cables not included.
MANUAL    DESCRIPTION SHEET
  315 HV2/10+ or - : ... up to 10 kV at 0.5 mA, polarity factory fixed, different HV output.
  316 HV2/4PF+: HV2/4 option with pseudo-floating voltage setting B’= B+A for synchronized detector potential scanning
  317 HV2/6PF+: HV2/6 option with pseudo-floating voltage setting B’= B+A for synchronized detector potential scanning. (max 1mA per channel)

  329 HVZ-G: passive DC adjustment plug for +/- 250V to ground (please define polarity)
  330 IBS: passive Intermediate MCP Bias contact Set.

  383 SPS2mini: mains adapter (100-250V AC) for up to four HV2/4 (version N24) or HV2/6, HV2/8 and HV2/10+ modules
MANUAL
