RoentDek PRODUCT LIST

PARTICLE / PHOTON  DETECTORS




Product
number


Product
Description

  014

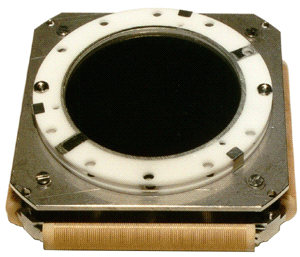

DLD40EP: 2-dim Delay-Line-Detector incl. microchannel plate set with 12µm pore and open area ratio 70%. 2x 1 mm thick, L/D 2x 80:1, 50 mm outer diameter, resistance matched in chevron configuration. Active diameter >42 mm, quality linear diameter 40 mm. Detector size: diameter 95 mm, depth 30 mm. The rate tolerance of the detector is at least 1 MHz.
DRAWING      MANUAL
    Alternative with higher detection efficiency:
DLD40_f: ...OAR 90%, 12 µm funneled + 25 µm pore, 0.7+1.5 mm, (2x non-matched 60:1).

  023




DLD75: 2-dim Delay-Line-Detector incl. microchannel plate set with 12 µm pore and open area ratio 70%. 2x 1 mm thick, L/D 2x 80:1, 87 mm outer diameter, resistance matched in chevron configuration. Active diameter >75 mm, quality linear diameter 75 mm. Detector size: diameter 145 mm, depth 30 mm. The rate tolerance of the detector is at least 1MHz.
DRAWING      MANUAL
    Alternative with higher detection efficiency:
DLD75_f: …OAR 90%, 12 µm funneled + 25 µm pore, 1.0+1.5 mm, (non-matched 80:1/60:1)



  024 HEX75b: 2-dim Delay-Line-Detector with improved multi-hit tolerance (zero dead time), incl. microchannel plateset with 12 µm pore and open area ratio 70%. 2x 1 mm thick, L/D 2x 80:1, 87 mm outer diameter, resistance matched in chevron configuration. Active diameter of the detector is 75 mm. Detector size: diameter 196 mm, depth 30 mm.
DRAWING      MANUAL
    (also available as HEX75L, with enlarged triple layer area, detector size as HEX100)
DRAWING      MANUAL
    Both versions optionally with funnel MCP stack (OAR 90%): non-matched: …_f
HEX75/40: optionally equipped with 40 mm MCP (as with DLD40EP)

DRAWING      MANUAL



025/029

HEX75o, HEX120o: 2-dim Delay-Line-Detector with central hole.
MANUAL


  028 DLD105: 2-dim Delay-Line-Detector incl. microchannel plates with 25 µm pore and open area ratio 70%, 1 mm thick, L/D 36:1, 114 mm outer diameter, resistances matched. Active diameter 107 mm, quality linear diameter 105 mm. Detector size: diameter 196 mm, depth 30 mm. The rate tolerance of the detector is at least 1 MHz.
MANUAL
  030 DLD150: as DLD105, but with active diameter 150 mm. Detector diameter 245 mm, OAR 45%.

  027 HEX100: 2-dim Delay-Line-Detector with improved multi-hit tolerance (zero dead time) incl. microchannel plate set (Z-stack, 3 MCP) with 27.5 µm pore and open area ratio 70%. 1 mm thick, L/D 36:1, 114 mm outer diameter, resistances matched. Active diameter of the detector is 105 mm, triple layer area diameter > 100 mm. Detector size: diameter 246 mm, depth 30 mm.
MANUAL
  004/005 DET40/75: Particle-counting detector with metal anode incl. microchannel plate set with 12 µm pore and open area ratio 70%. 2x 1 mm thick, L/D 2x 80:1, 50/87 mm outer diameter, active >40/75 mm. Detector size (without flange mounting): diameter 66/106 mm, depth 10 mm. Maximal count rate at least 1 MHz.
Please inquire for timing detectors with other active diameters, e.g.25 / 105 / 150 mm.

DRAWING      MANUAL





  009/010 new DET40P/75P: Particle-counting detector with phosphor screen incl. microchannel plate set with 12 µm pore and open area ratio 70%. 2x 1 mm thick, L/D 2x 80:1, 50/87 mm outer diameter, active >40/75 mm. Detector size (without flange mounting): diameter 66/106 mm, depth 10 mm. Maximal count rate at least 1 MHz.
MANUAL

  060

RS-DET40: flange-mounted 40 mm MCP stack (Chevron) on CF100 (ICF153) with resistive screen for image charge signal pick-up on air-side read-out electrode (modular, e.g. delay-line, Wedge&Strip, Pixel for imaging). Includes signal feedthroughs and MCP timing pickup (as FT4TP).
DESCRIPTION

  062 RS-DET75: as RS-DET40 but with 75 mm MCP stack (Chevron) on CF150 (ICF203)

  061 DLD40X: 2-dim Delay-Line-Detector based on the RS-DET40 with external delay-line anode LC40Hex. Includes case and signal transformers (as FT12-TP). Does not require BA3 and only one HV2/4 module (+HVT) in all operation modes.
DESCRIPTION





    Please contact us for special delay-line anode sizes,(also one-dimensional), MCP detector front potential meshes and sealed MCP detectors (MCP-PMT) for visible photon detection at: sales
